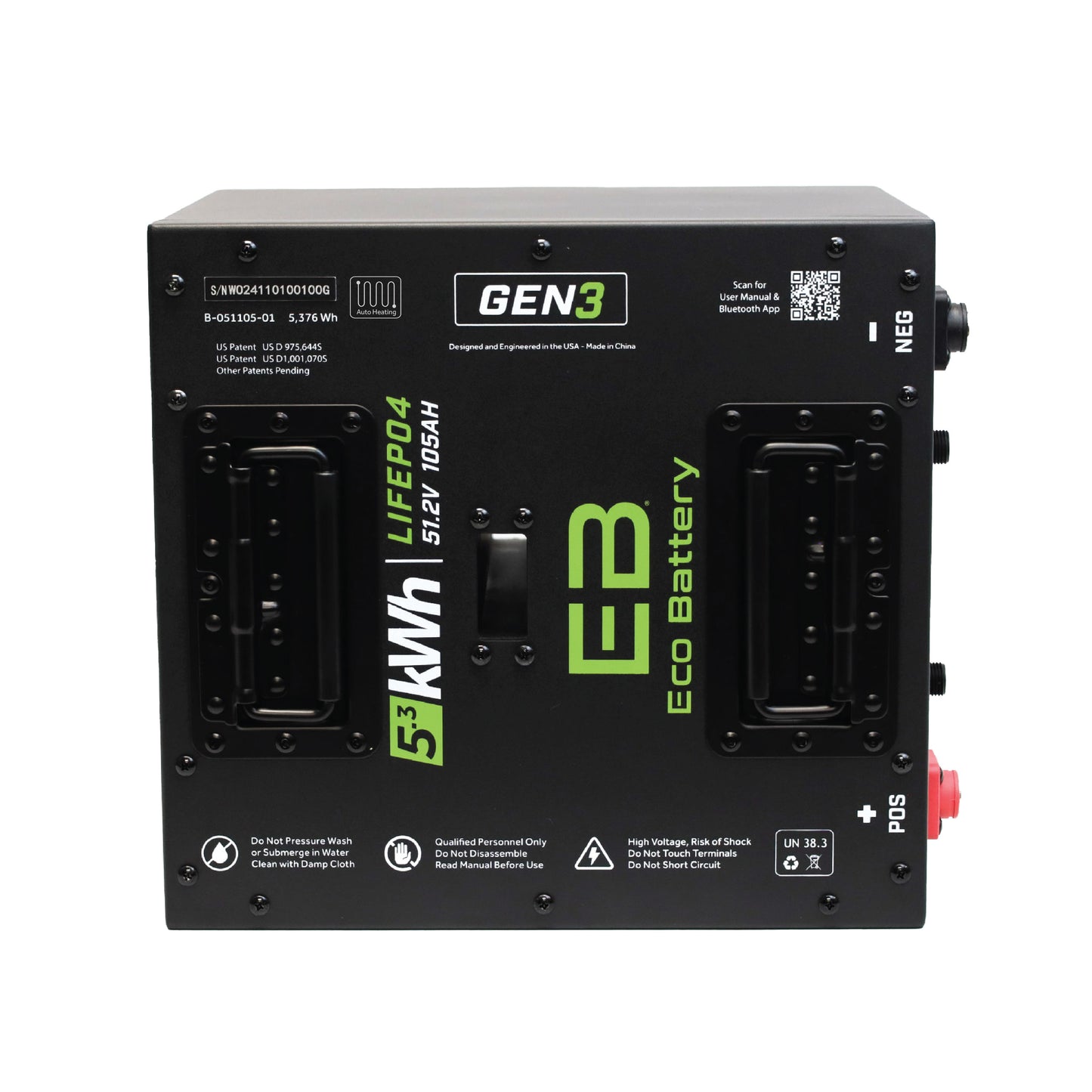

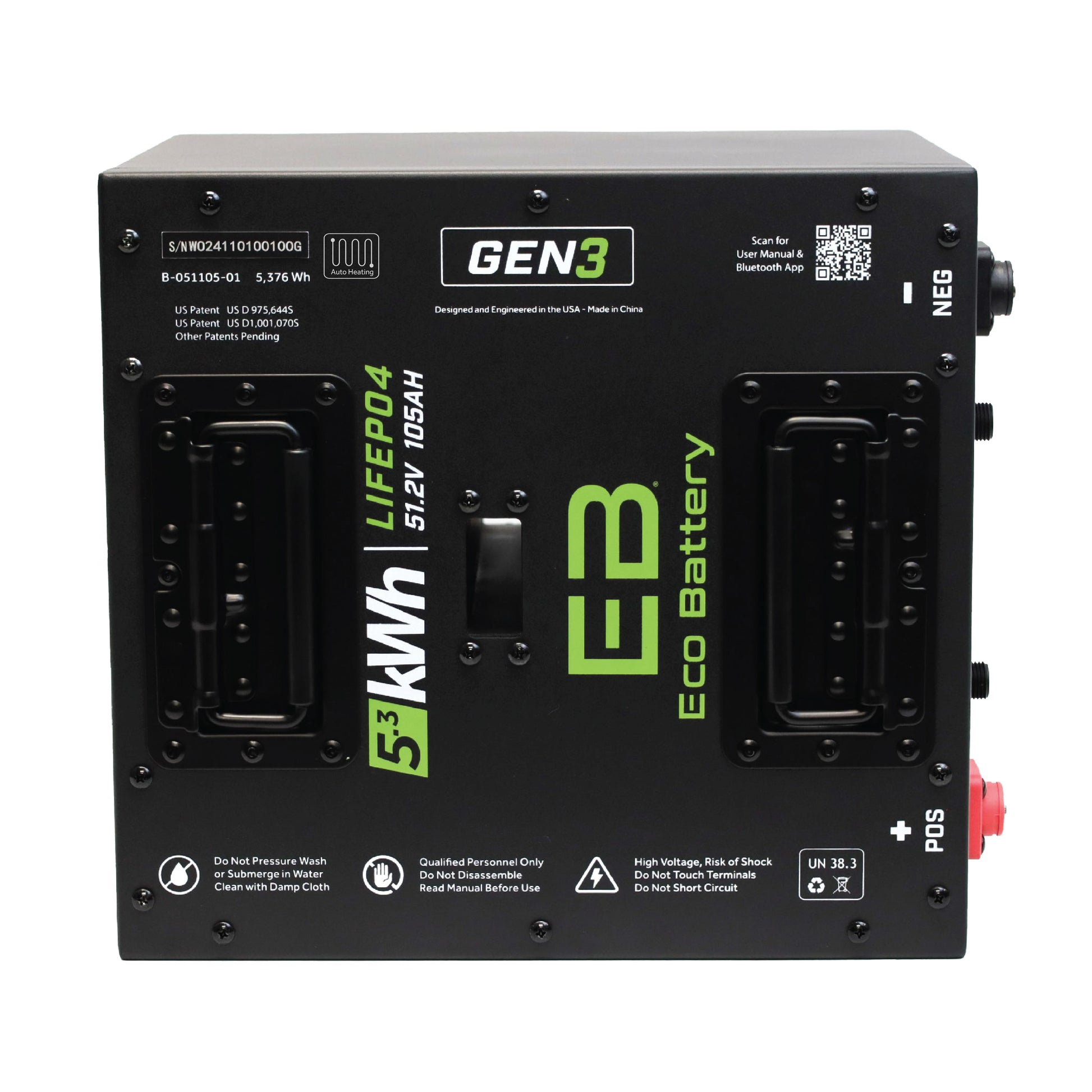

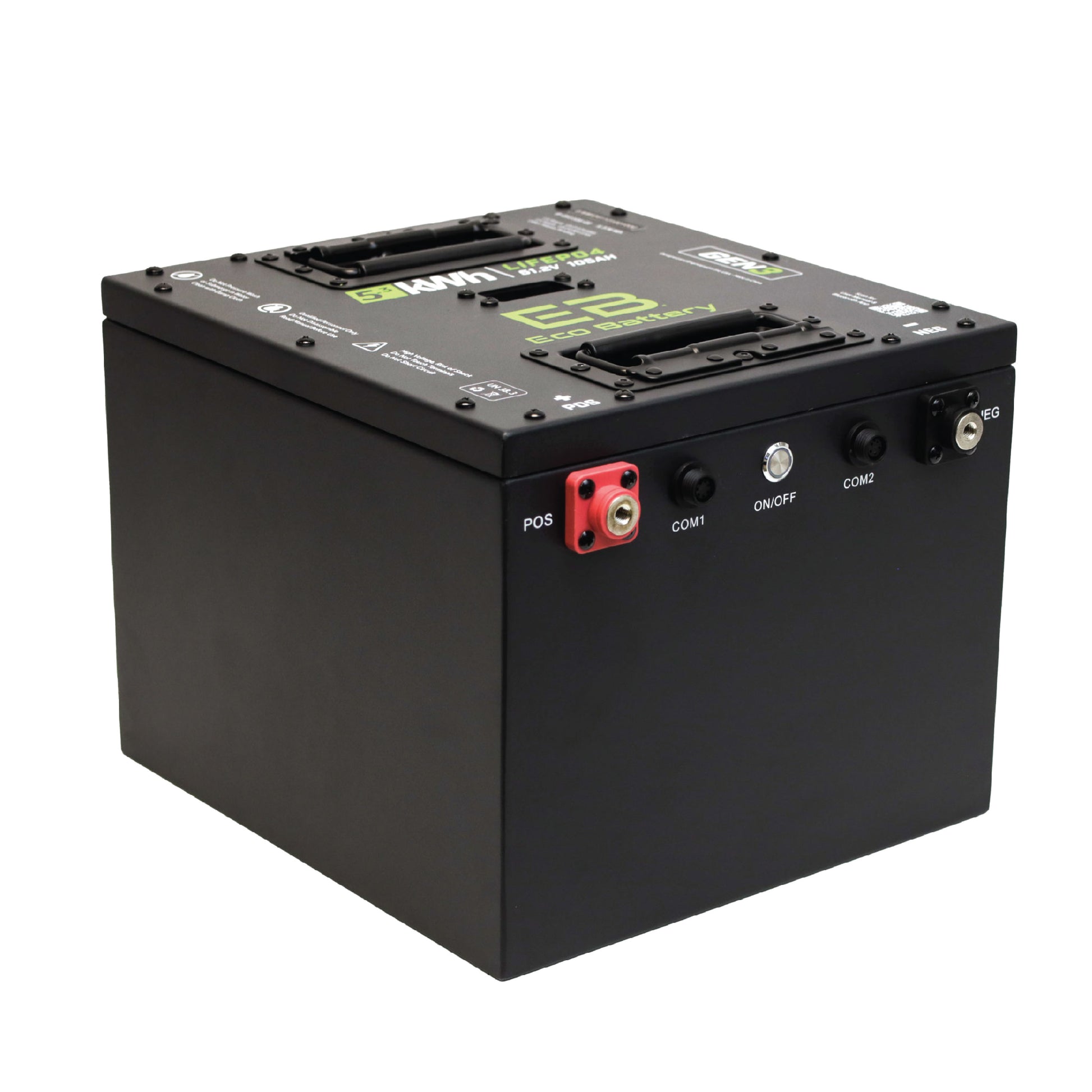

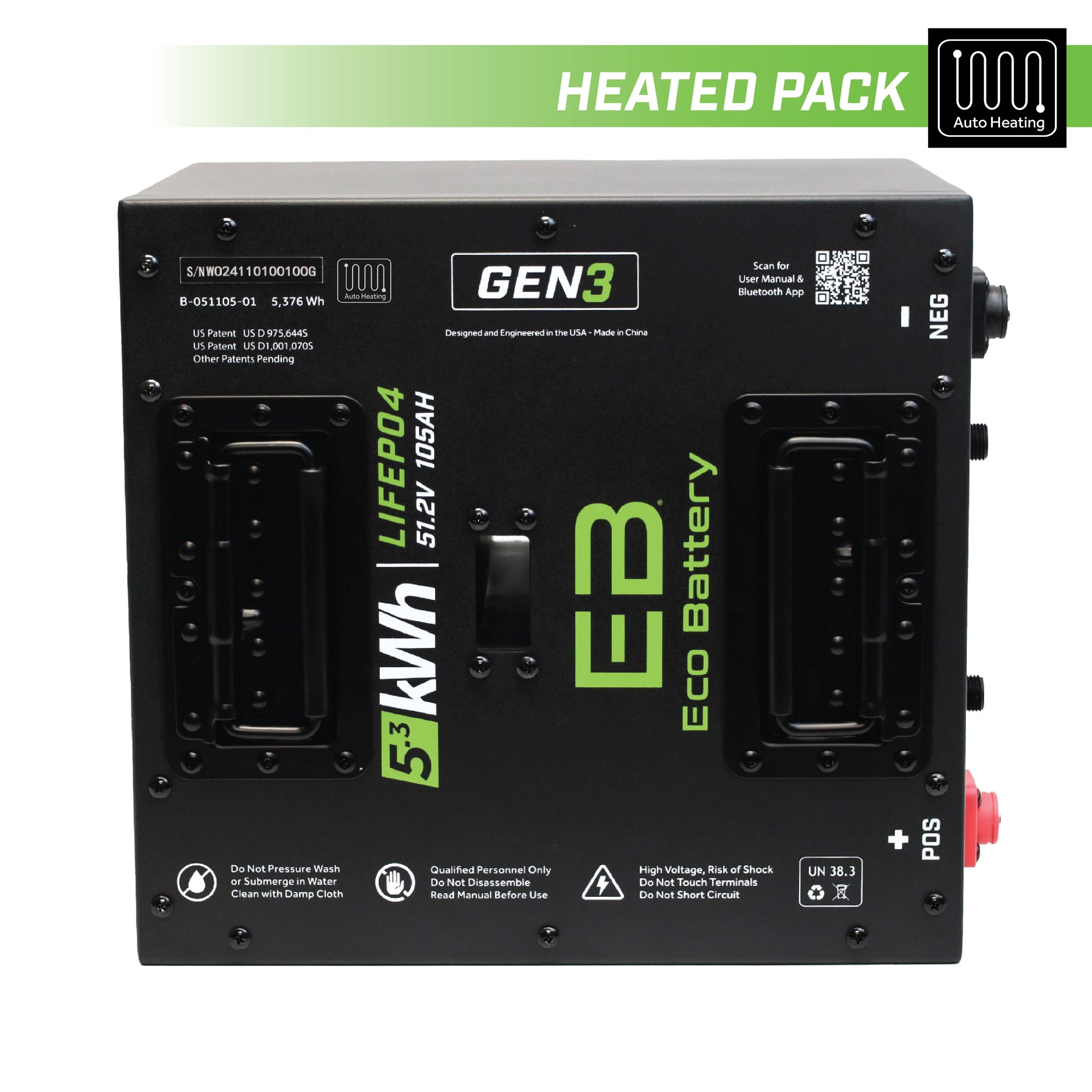

51V 105Ah Thru-Hole LiFePO4 Battery / Heated

51V 105Ah Thru-Hole LiFePO4 Battery / Heated

$2,328.00
$2,328.00
Sale Sold out

A-051105-01-H

The 51V 105Ah Thru-Hole Heated battery, an exclusive top seller from Eco Battery, features a unique and patented design that allows for easy installation using a center-mounted rod. It fits effortlessly in Club Car carts using the stock J-hook and can be made compatible with Yamaha, E-Z-GO, ICON, and more with a simple bracket. This lithium upgrade significantly increases the vehicle's range, eliminates maintenance hassles, and provides the capability to self-heat for safe charging in freezing temperatures.

Find a Dealer

Details

Featuring a storage capacity of 105Ah, this battery is an excellent upgrade for 48V carts. It strikes an optimal balance between performance and range, making it suitable for both stock and modified carts. Its compact size and unique center Thru-Hole mounting tunnel make it highly versatile.

Want to use your cart all year round? The self-heating capabilities enable the battery to charge effectively and safely in temperatures as low as -4°F, allowing users to enjoy their vehicles in any climate without issues.

Downloads

Warranty
Eco Battery lithium is backed by a 10-year warranty. With a U.S.-based headquarters and an industry-leading support team, we are here for a lifetime of service and support.
View full details

Explore Battery Features:

Eco Battery offers complete installation solutions for your specific cart.

Auto-Heating Technology

Auto-Heating Technology

When outside temperatures drop below freezing, our auto-heating lithium batteries warm up on their own. They feature an internal heating element that draws power from the charger to gently warm the cells, allowing for safe charging in cold conditions and ensuring optimal power output even in freezing weather.

Power Save Mode

Power Save Mode

Eco Battery pioneered Power Save technology in the golf cart space, providing built-in protection for your battery during storage. Power Save Mode features automatic and adjustable power-off timers, offering both convenience and protection for your battery.

OEM Specific Install Kits

OEM Specific Install Kits

Installation is made easy with complete, cart manufacturer- and model-specific kits, featuring exclusive mounts, patented charge ports, and other accessories to provide a full, OEM-finished look for your new battery install.

Multiple Safeguards

Multiple Safeguards

We take safety seriously and ensure multiple levels of protection for a worry-free lithium experience. The proprietary Eco Battery Management System (BMS) has several built-in safeguards to monitor battery activity during charging, use, and in varying temperatures.

Robust Construction

Robust Construction

In a cart that's always on the move, Eco Battery provides a case you can rely on. Housed in a powder-coated steel case, rated for IP67 water and weather resistance, with premium internal connections, this battery is ready for any adventure.

The Trusted Choice

The Trusted Choice

Trusted by top OEMs and dealers worldwide, Eco Battery powers more cart brands than any other lithium battery. Our reputation for incredible customer support, along with a U.S.-based headquarters and team, provides a foundation you can trust for the life of your battery.

Specifications

BATTERIES (GEN3) 38.4V 105Ah 51.2V 60Ah 51.2V 105Ah
Thru-Hole		 51.2V 105Ah
Skinny		 51.2V 160Ah 70.4V 105Ah
Energy Capacity 4.0 kWh 3.0 kWh 5.3 kWh 5.3 kWh 8.1 kWh 7.3 kWh
Nominal Voltage 38.4V 51.2V 51.2V 51.2V 51.2V 70.4V
Nominal Ah 105Ah 60Ah 105Ah 105Ah 160Ah 105Ah
Max Discharge 5 Seconds 600A 500A 600A 600A 600A 600A
Max Discharge 10 Sec 550A 450A 550A 550A 550A 550A
Max Cont. Discharge 250A 200A 250A 250A 250A 250A
Cell Count 12 16 16 16 32 22
Cell Type Prismatic Prismatic Prismatic Prismatic Prismatic Prismatic
Cell Configuration 1P12S 1P16S 1P16S 1P16S 2P16S 1P22S
Cell Chemistry Lithium Iron Phosphate Lithium Iron Phosphate Lithium Iron Phosphate Lithium Iron Phosphate Lithium Iron Phosphate Lithium Iron Phosphate
Weight 78 lbs (35.38Kg) 78 lbs (35.38Kg) 98 lbs (44.45Kg) 113 lbs (51.25Kg) 165 lbs (74.84Kg) 146 lbs (66.22Kg)
Dimension LxWxH 13.37" x 10.18" x 10.75" 13.37" x 10.18" x 11.47" 13.14" x 12.24" x 10.15" 22" x 9.75" x 10.43" 22" x 12.125" x 10.625" 22" x 12.125" x 10.625"
Charging Temp Range 32F+ 32F+ 32F+ 32F+ 32F+ 32F+
Discharge Temp Range -4F to 140F -4F to 140F -4F to 140F -4F to 140F -4F to 140F -4F to 140F
Shell Type Powder Coated Steel Powder Coated Steel Powder Coated Steel Powder Coated Steel Powder Coated Steel Powder Coated Steel
IP Rating IP67 IP67 IP67 IP67 IP67 IP67

Communication

Eco Battery leads the industry by using advanced CAN communication to connect both chargers and the cart's components with the Battery Management System (BMS), ensuring safety during charging and use. This technology not only extends the lifespan of connected products but also enhances the longevity of high-performance usage. As a leader in the field, Eco Battery offers the most advanced and proprietary battery software available.

Safety

Not all lithium is created equal, whether in its chemistry or cell quality. Eco Battery uses the safest and most stable combination of LiFePO4 Grade A quality lithium cells. Pairing this stable chemical makeup with advanced monitoring, multiple temperature sensors, CAN-enabled chargers, and an advanced BMS system adds multiple layers of safety and longevity.

FAQs

How does a heated lithium Eco Battery work?
Eco Battery's auto-heating battery uses an internal heating element controlled by the Battery Management System (BMS). When the temperature is too low and charging voltage is applied, the heater activates automatically — no external pads, switches, or timers required. Once the cells reach the optimal temperature, the battery will charge as usual.
Can I charge a lithium battery in freezing temperatures?
No, STANDARD lithium batteries should not be charged below 32°F (0°C), as this can cause lithium plating and permanent damage. Our HEATED lithium batteries address this issue by warming the cells before charging begins, thereby making them safe for use in cold climates.
Can lithium batteries be used in freezing temperatures?
Yes. Standard lithium batteries can safely discharge in cold weather down to -4°F (-20°C), but their performance is reduced, often resulting in shorter run times until the battery warms up. With an Eco Battery heated model, if charged right before use, the cells warm themselves before charging, creating a warmer starting battery temperature that performs better.
Do I need special equipment to heat my battery?
Eco Battery Heated Lithium: No extra equipment needed. The smart Battery Management System (BMS) automatically controls heating — just plug in and charge. Standard Lithium: Requires add-ons like external heating pads, insulated blankets, or moving batteries indoors to stay operational.
Does the cold affect the lifespan of a lithium battery?
No — when used correctly, cold weather won’t damage the battery. Extreme cold may temporarily reduce performance, but as long as the battery isn’t charged below freezing, it won’t cause harm. Self-heating lithium batteries take it a step further by protecting against low-temperature charging and extending the overall cycle life.
