Extended Range
Explore further and go longer with increased capacity and greater discharge potential compared to lead-acid batteries. Utilize more capacity and charge faster with Grade A lithium.
-
Zero Maintenance
No water filling, no corrosive acids damaging your cart, and the confidence of safe long-term storage. Move to lithium and upgrade to worry-free and hassle-free operation!
-
Long Lifespan
More cycles, more performance-filled years, backed by an 8-year warranty. Our industry-best service team is here for you every mile along the way.
-
Safe and Reliable
The safest Lithium LiFePO4 chemistry, paired with advanced Battery Management technology, ensures safe operation during charging, use, and storage.
THIS BUNDLE CONTAINS:
Eco Battery offers complete installation solutions for your specific cart.

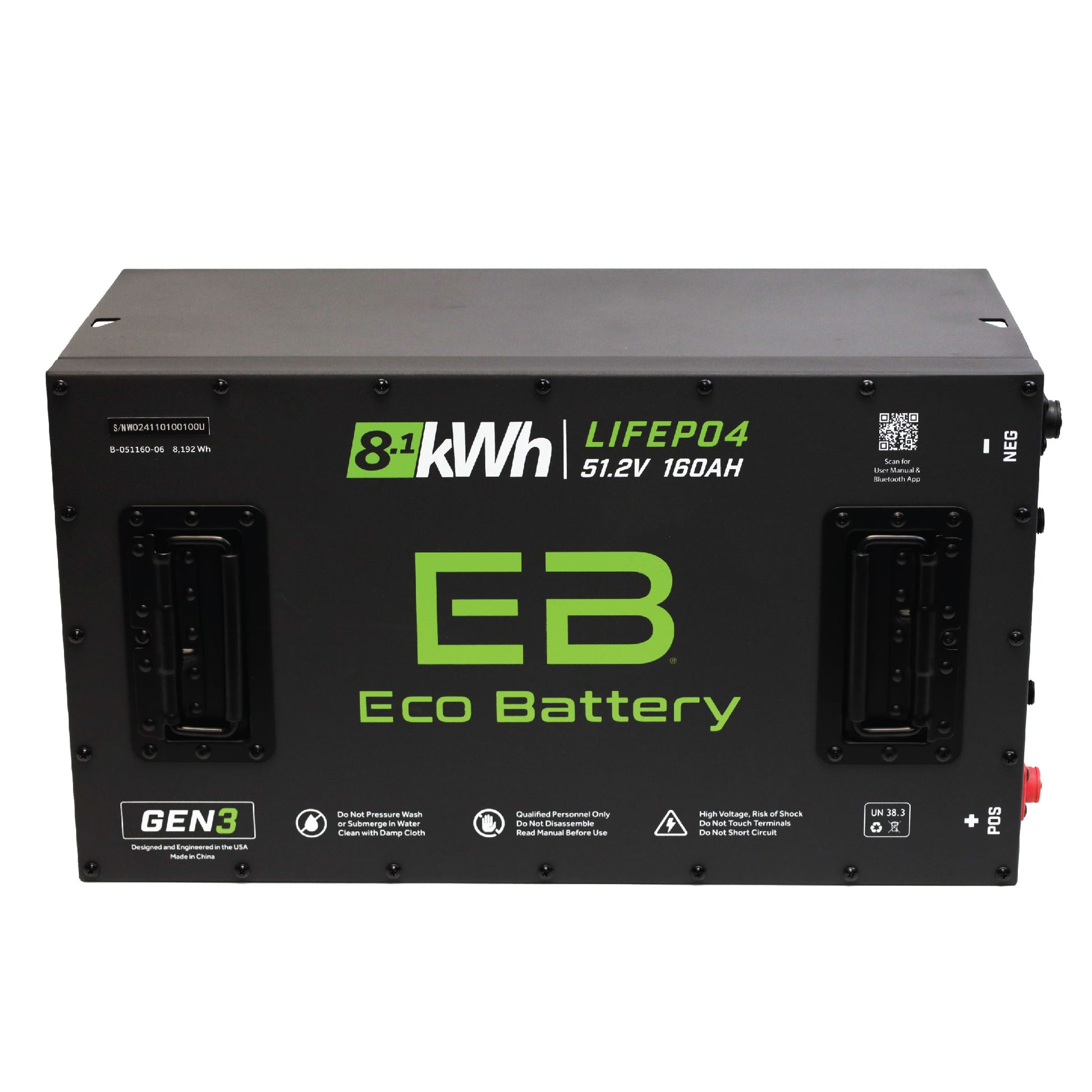

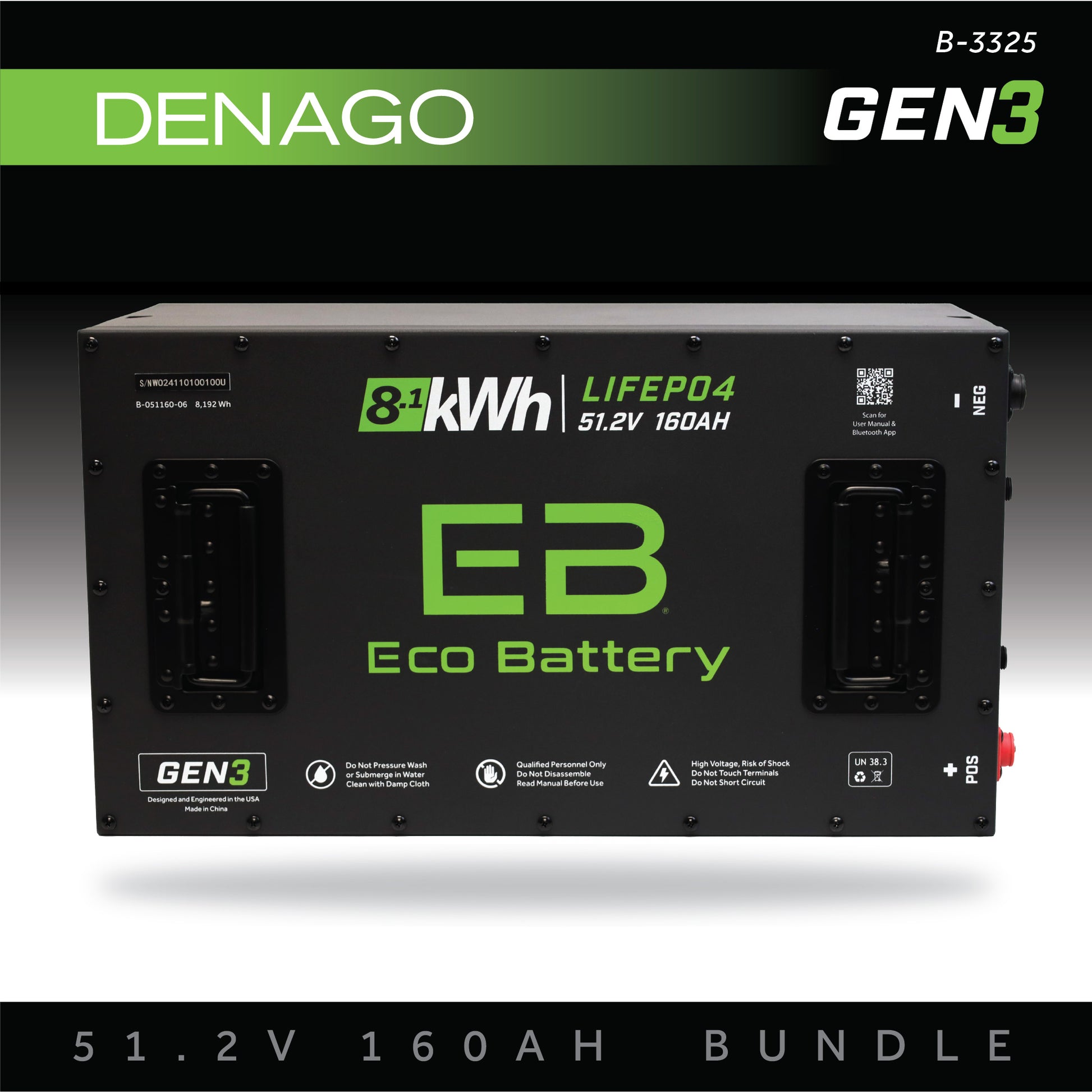

GEN3 51v 160ah
A-051160-06
Remote Button Battery Wake Up Kit
A-4220
Eco Battery 5 Pin CAN Cable / 12in
A-4113
CAN Adapter / Denago
A-4121
Specifications
| BATTERIES (GEN3) | 38.4V 105Ah | 51.2V 60Ah | 51.2V 105Ah Thru-Hole |
51.2V 105Ah Skinny |
51.2V 160Ah | 70.4V 105Ah |
|---|---|---|---|---|---|---|
| Energy Capacity | 4.0 kWh | 3.0 kWh | 5.3 kWh | 5.3 kWh | 8.1 kWh | 7.3 kWh |
| Nominal Voltage | 38.4V | 51.2V | 51.2V | 51.2V | 51.2V | 70.4V |
| Nominal Ah | 105Ah | 60Ah | 105Ah | 105Ah | 160Ah | 105Ah |
| Max Discharge 5 Seconds | 600A | 500A | 600A | 600A | 600A | 600A |
| Max Discharge 10 Sec | 550A | 450A | 550A | 550A | 550A | 550A |
| Max Cont. Discharge | 250A | 200A | 250A | 250A | 250A | 250A |
| Cell Count | 12 | 16 | 16 | 16 | 32 | 22 |
| Cell Type | Prismatic | Prismatic | Prismatic | Prismatic | Prismatic | Prismatic |
| Cell Configuration | 1P12S | 1P16S | 1P16S | 1P16S | 2P16S | 1P22S |
| Cell Chemistry | Lithium Iron Phosphate | Lithium Iron Phosphate | Lithium Iron Phosphate | Lithium Iron Phosphate | Lithium Iron Phosphate | Lithium Iron Phosphate |
| Weight | 78 lbs (35.38Kg) | 78 lbs (35.38Kg) | 98 lbs (44.45Kg) | 113 lbs (51.25Kg) | 165 lbs (74.84Kg) | 146 lbs (66.22Kg) |
| Dimension LxWxH | 13.37" x 10.18" x 10.75" | 13.37" x 10.18" x 11.47" | 13.14" x 12.24" x 10.15" | 22" x 9.75" x 10.43" | 22" x 12.125" x 10.625" | 22" x 12.125" x 10.625" |
| Charging Temp Range | 32F+ | 32F+ | 32F+ | 32F+ | 32F+ | 32F+ |
| Discharge Temp Range | -4F to 140F | -4F to 140F | -4F to 140F | -4F to 140F | -4F to 140F | -4F to 140F |
| Shell Type | Powder Coated Steel | Powder Coated Steel | Powder Coated Steel | Powder Coated Steel | Powder Coated Steel | Powder Coated Steel |
| IP Rating | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
Communication
Eco Battery leads the industry by using advanced CAN communication to connect both chargers and the cart's components with the Battery Management System (BMS), ensuring safety during charging and use. This technology not only extends the lifespan of connected products but also enhances the longevity of high-performance usage. As a leader in the field, Eco Battery offers the most advanced and proprietary battery software available.
Safety
Not all lithium is created equal, whether in its chemistry or cell quality. Eco Battery uses the safest and most stable combination of LiFePO4 Grade A quality lithium cells. Pairing this stable chemical makeup with advanced monitoring, multiple temperature sensors, CAN-enabled chargers, and an advanced BMS system adds multiple layers of safety and longevity.
