Extended Range
Explore further and go longer with increased capacity and greater discharge potential compared to lead-acid batteries. Utilize more capacity and charge faster with Grade A lithium.
-
Zero Maintenance
No water filling, no corrosive acids damaging your cart, and the confidence of safe long-term storage. Move to lithium and upgrade to worry-free and hassle-free operation!
-
Long Lifespan
More cycles, more performance-filled years, backed by an 8-year warranty. Our industry-best service team is here for you every mile along the way.
-
Safe and Reliable
The safest Lithium LiFePO4 chemistry, paired with advanced Battery Management technology, ensures safe operation during charging, use, and storage.
THIS BUNDLE CONTAINS:
Eco Battery offers complete installation solutions for your specific cart.
GEN3 51v 160ah
A-051160-06
Remote Button Battery Wake Up Kit
A-4220

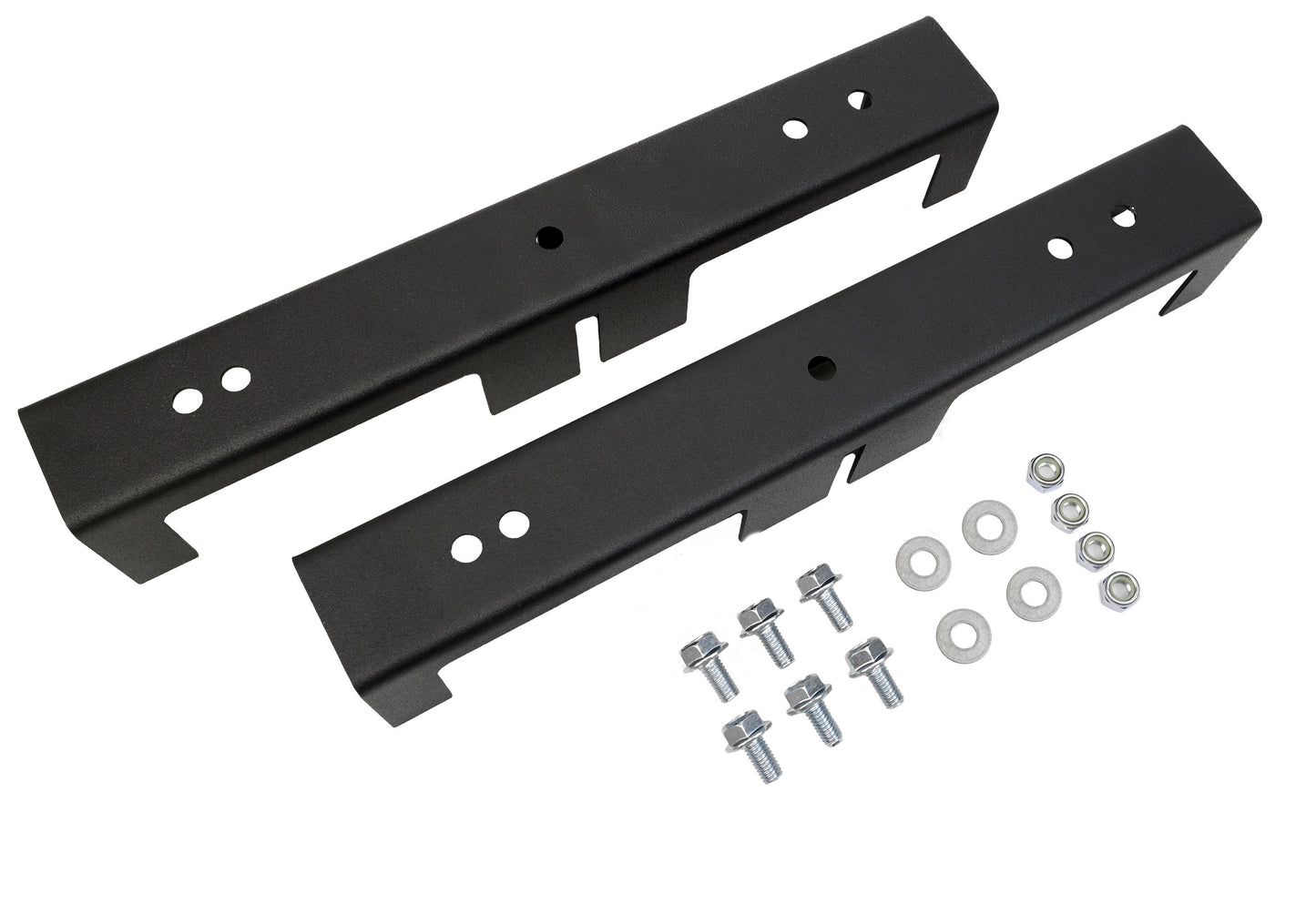

Eco Battery Mounting Kit / PilotCar
A-8304
Eco Battery 5 Pin Meter Cable / 10ft
A-4211
51V 15A CAN Charger / OEM:1081
A-1081
Specifications
| BATTERIES | 38.4V 105Ah | 51.2V 60Ah | 51.2V 105Ah Thru-Hole |
51.2V 105Ah Skinny |
51.2V 160Ah | 70.4V 105Ah |
|---|---|---|---|---|---|---|
| Energy Capacity | 4.0 kWh | 3.0 kWh | 5.3 kWh | 5.3 kWh | 8.1 kWh | 7.3 kWh |
| Nominal Voltage | 38.4V | 51.2V | 51.2V | 51.2V | 51.2V | 70.4V |
| Nominal Ah | 105Ah | 60Ah | 105Ah | 105Ah | 160Ah | 105Ah |
| Max Discharge 5 Seconds | 600A | 500A | 600A | 600A | 600A | 600A |
| Max Discharge 10 Sec | 550A | 450A | 550A | 550A | 550A | 550A |
| Max Cont. Discharge | 250A | 200A | 250A | 250A | 250A | 250A |
| Cell Count | 12 | 16 | 16 | 16 | 32 | 22 |
| Cell Type | Prismatic | Prismatic | Prismatic | Prismatic | Prismatic | Prismatic |
| Cell Configuration | 1P12S | 1P16S | 1P16S | 1P16S | 2P16S | 1P22S |
| Cell Chemistry | Lithium Iron Phosphate | Lithium Iron Phosphate | Lithium Iron Phosphate | Lithium Iron Phosphate | Lithium Iron Phosphate | Lithium Iron Phosphate |
| Weight | 78 lbs (35.38Kg) | 78 lbs (35.38Kg) | 98 lbs (44.45Kg) | 113 lbs (51.25Kg) | 165 lbs (74.84Kg) | 146 lbs (66.22Kg) |
| Dimension LxWxH | 13.37" x 10.18" x 10.75" | 13.37" x 10.18" x 11.47" | 13.14" x 12.24" x 10.15" | 22" x 9.75" x 10.43" | 22" x 12.125" x 10.625" | 22" x 12.125" x 10.625" |
| Charging Temp Range | 32F+ | 32F+ | 32F+ | 32F+ | 32F+ | 32F+ |
| Discharge Temp Range | -4F to 140F | -4F to 140F | -4F to 140F | -4F to 140F | -4F to 140F | -4F to 140F |
| Shell Type | Powder Coated Steel | Powder Coated Steel | Powder Coated Steel | Powder Coated Steel | Powder Coated Steel | Powder Coated Steel |
| IP Rating | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
