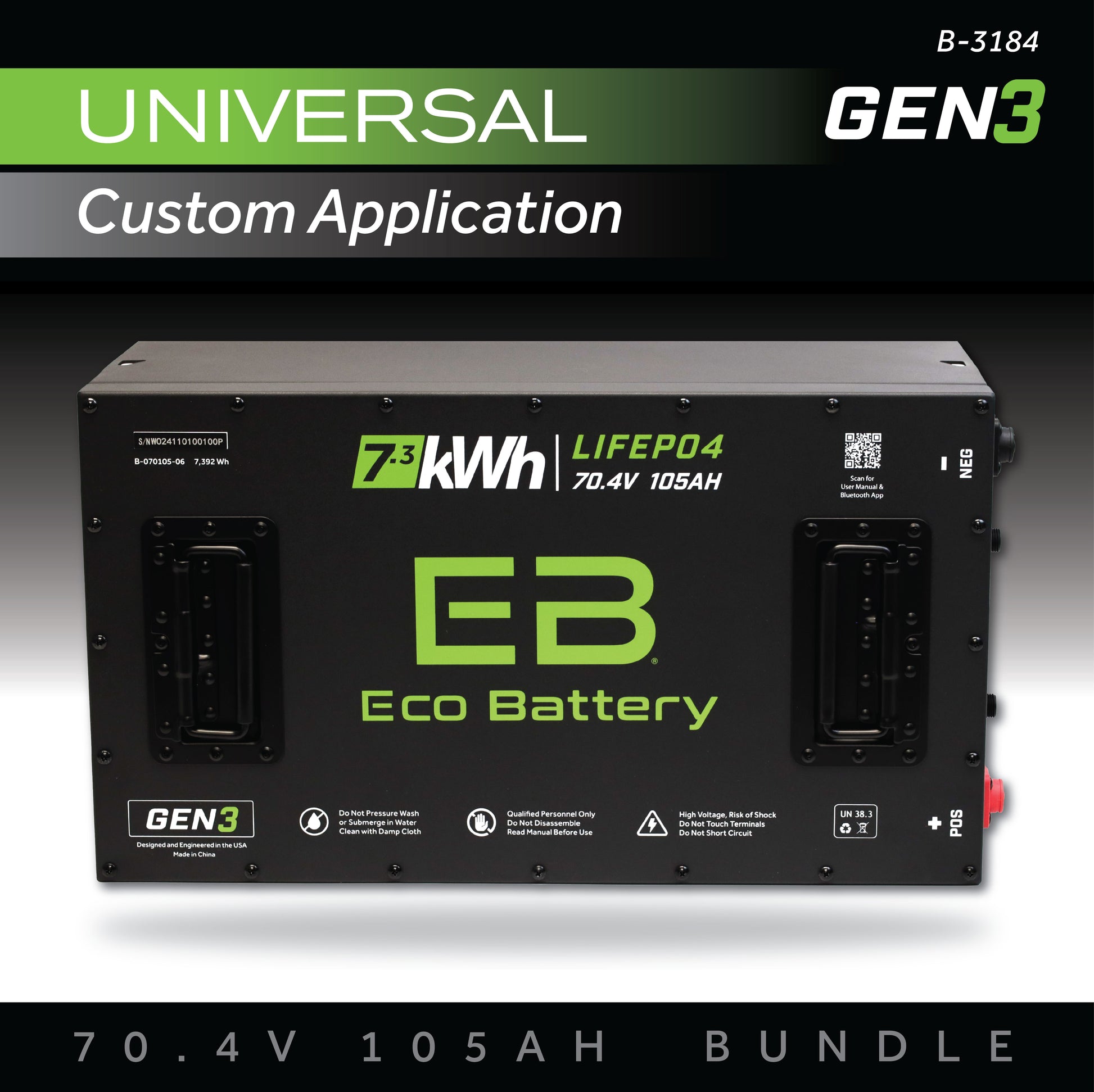

70V 105AH Battery Bundle / Universal
70V 105AH Battery Bundle / Universal
SKU:B-3184
This complete Eco Battery 70V lithium battery bundle is engineered to unlock maximum performance. Featuring a high-output 70V LiFePO4 lithium battery, CAN charger, and cart-specific installation components, this all-in-one package delivers everything needed for a clean, OEM-style installation. Designed for high-performance golf cart upgrades, the bundle delivers explosive acceleration, greater torque, faster charging, reduced weight, and consistent power. Perfect for upgraded AC drive systems, lifted carts, and performance builds seeking more speed, power, and reliability than traditional lead-acid batteries can deliver.
Details
Details
This Bundle Contains:
A-070105-06 70V 105AH LiFePO4 Battery GEN3
A-1072 70V 15A CAN Charger
A-1272 DC-DC 12V Converter / 40V-90V Input
A-3102 LCD State of Charge Meter
A-4022 Eco Battery Charge Port / EZGO TXT / 110V Plug - Quick Connect Plug
A-8003 Battery Mounting Hardware / 5/16in
A-4220 Remote Button Battery Wake Up Kit
This bundle includes everything needed for universal fitment. Installation is DIY and may require custom mounting, drilling, or minor fabrication.
Warranty
Warranty
-
Extended Range
Explore further and go longer with increased capacity and greater discharge potential compared to lead-acid batteries. Utilize more capacity and charge faster with Grade A lithium.
-
Zero Maintenance
No water filling, no corrosive acids damaging your cart, and the confidence of safe long-term storage. Move to lithium and upgrade to worry-free and hassle-free operation!
-
Long Lifespan
More cycles, more performance-filled years, backed by a Limited Lifetime warranty. Our industry-best service team is here for you every mile along the way.
-
Safe and Reliable
The safest Lithium LiFePO4 chemistry, paired with advanced Battery Management technology, ensures safe operation during charging, use, and storage.
Specifications
| BATTERIES (GEN3) | 38.4V 105Ah | 51.2V 60Ah | 51.2V 105Ah Thru-Hole |
51.2V 105Ah Skinny |
51.2V 160Ah | 70.4V 105Ah |
|---|---|---|---|---|---|---|
| Energy Capacity | 4.0 kWh | 3.0 kWh | 5.3 kWh | 5.3 kWh | 8.1 kWh | 7.3 kWh |
| Nominal Voltage | 38.4V | 51.2V | 51.2V | 51.2V | 51.2V | 70.4V |
| Nominal Ah | 105Ah | 60Ah | 105Ah | 105Ah | 160Ah | 105Ah |
| Max Discharge 5 Seconds | 600A | 500A | 600A | 600A | 600A | 600A |
| Max Discharge 10 Sec | 550A | 450A | 550A | 550A | 550A | 550A |
| Max Cont. Discharge | 250A | 200A | 250A | 250A | 250A | 250A |
| Cell Count | 12 | 16 | 16 | 16 | 32 | 22 |
| Cell Type | Prismatic | Prismatic | Prismatic | Prismatic | Prismatic | Prismatic |
| Cell Configuration | 1P12S | 1P16S | 1P16S | 1P16S | 2P16S | 1P22S |
| Cell Chemistry | Lithium Iron Phosphate | Lithium Iron Phosphate | Lithium Iron Phosphate | Lithium Iron Phosphate | Lithium Iron Phosphate | Lithium Iron Phosphate |
| Weight | 78 lbs (35.38Kg) | 78 lbs (35.38Kg) | 98 lbs (44.45Kg) | 113 lbs (51.25Kg) | 165 lbs (74.84Kg) | 146 lbs (66.22Kg) |
| Dimension LxWxH | 13.37" x 10.18" x 10.75" | 13.37" x 10.18" x 11.47" | 13.14" x 12.24" x 10.15" | 22" x 9.75" x 10.43" | 22" x 12.125" x 10.625" | 22" x 12.125" x 10.625" |
| Charging Temp Range | 32F+ | 32F+ | 32F+ | 32F+ | 32F+ | 32F+ |
| Discharge Temp Range | -4F to 140F | -4F to 140F | -4F to 140F | -4F to 140F | -4F to 140F | -4F to 140F |
| Shell Type | Powder Coated Steel | Powder Coated Steel | Powder Coated Steel | Powder Coated Steel | Powder Coated Steel | Powder Coated Steel |
| IP Rating | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
