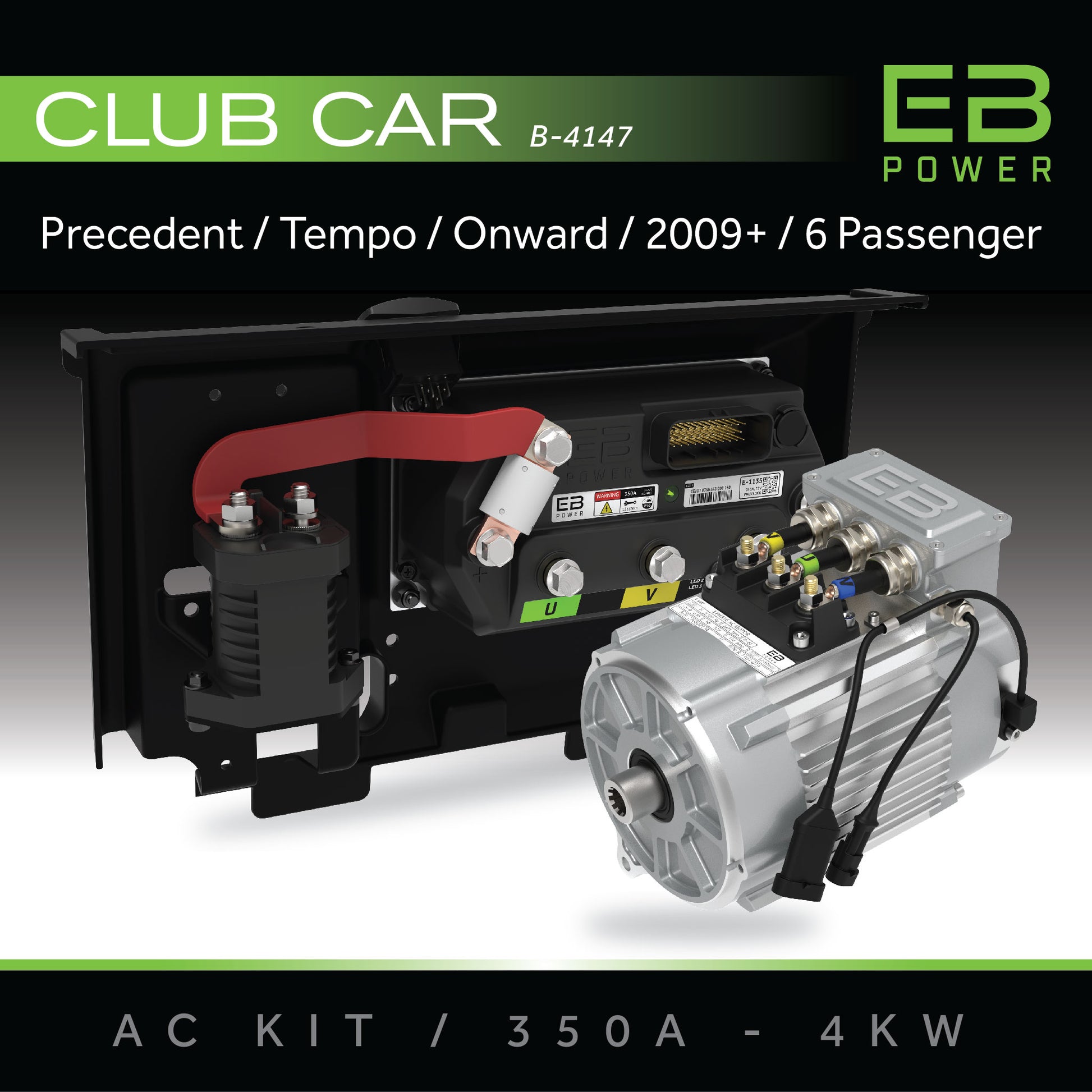

EB Power AC Kit / 350A + 4kW / Club Car Precedent / 2009+ / 6 Passenger

EB Power AC Kit / 350A + 4kW / Club Car Precedent / 2009+ / 6 Passenger

$1,665.00
$1,665.00
Sale Sold out

B-4147

Built for extended 6-passenger Precedent carts, this kit includes a longer harness to accommodate the larger chassis. The Precedent-specific controller mount replaces the factory plate for a stronger, more precise fit. With no limitations on lifts or motors, you get complete flexibility. The 350A controller and 4kW motor offer reliable performance for bigger carts that don’t need maximum speed or torque.

Find a Dealer

Details

This Bundle Contains:

A-8781  EB Power Controller Plate Assembly / Precedent / 2009+
   A-8780  EB Power Controller Plate / Club Car Precedent / 2009+
   A-1135  EB Power Motor Controller Unit / 350 Amp
   A-0116  EB Power Solenoid / 400A
   A-3016  EB Power Solenoid Mounting Bracket
   A-0122  EB Power Fuse / 400A / 150V DC
   A-3019  EB Power Fuse Cover / Motor Controller
   Configuration Specific Bus Bar
   Required Hardware - Charger Plate Not Included

A-1104-010  EB Power 4kW Motor / 10 Spline
   Required Hardware

A-4089  EB Power AC Install Kit / Precedent / 2009+ / 6 Passenger
   A-4075  EB Power AC Accessory Pack / Club Car Precedent/Tempo/Onward / 2009+
   A-4159  EB Power AC Extended Harness / Club Car
   A-4242  EB Power 2 AWG Battery Cable Set / 43in Blk 46in Red
   A-4262  EB Power 2 AWG Phase Cable Set / 35in

*Not compatible with Club Car Onward HP models. (COMING SOON)


Downloads

Warranty
A 2-year warranty backs the EB Power AC Controller and Motor. With a U.S.-based headquarters and an industry-leading support team, we are committed to providing a lifetime of service and support.
View full details

Explore Bundle Features:

Eco Battery offers complete installation solutions for your specific cart.

Specifications

EB POWER CONTROLLER 600A 450A 350A
Nominal Voltage 36-90V 36-90V 36-90V
Dimensions 8.5"L x 6.6"W x 3.6"H - 218L x 168W x 93H (mm) 8.5"L x 5.7"W x 3.6"H - 218L x 146W x 93H (mm) 38.5"L x 4.35"W x 3.6"H - 218L x 116W x 93H (mm)
Power Connections (6) M8x1.25 (6) M8x1.25 (6) M8x1.25
Power Connection Torque Spec. 8 ft/lbs, 96 in/lbs, 10Nm 8 ft/lbs, 96 in/lbs, 10Nm 8 ft/lbs, 96 in/lbs, 10Nm
Weight 7.2 lbs, 3.3 kg 5.7 lbs 2.6 kg 4.8 lbs, 2.2 kg
IP Rating IP66 IP66 IP66
Storage Ambient Temp -40°C - 85°C -40°C - 85°C -40°C - 85°C
Operating Ambient Temp -40°C - 55°C -40°C - 55°C -40°C - 55°C
CAN Communication YES YES YES
Wi-Fi Communication via App YES YES YES
2 Minute Max Current 600A 450A 350A
60 Minute Rated Current 240A 180A 140A
Sensor Quadrature Encoder Quadrature Encoder Quadrature Encoder
Efficiency 98% 98% 98%
Cooling Flat Heatsink Flat Heatsink Flat Heatsink
EB POWER MOTOR 5kW 4kW
Motor Type Induction Induction
Voltage 48V 48V
Torque 48V 48V
Torque 55ft/lbs (75Nm) 46ft/lbs (63Nm)
Max Output Limits 5kW Continuous (9kW for 60 minutes) 4kW Continuous (8kW for 60 minutes)
RPM Limit 9500 9500
Dimensions 7.25x8.5x10.5 47.25x8.5x9.875
Weight 54 lbs - 24.5kg 51 lbs - 23kg
IP Rating IP67 IP67
Storage Temp -40°C - 85°C -40°C - 85°C
Environmental Operating Temp -30°C - 55°C -30°C - 55°C
Mounting Hardware Torque Spec. 15ft/lbs, 180 in/lbs, 20Nm 15ft/lbs, 180 in/lbs, 20Nm
Power Connection Torque Spec. 8 ft/lbs, 96 in/lbs, 10Nm 8 ft/lbs, 96 in/lbs, 10Nm
EB POWER SOLENOID SKU: A-0116
Voltage 200V DC Max
Continuous Amp 400A
Peak Amp 4000A for 1 second, 2000A for 10 seconds
Coil Voltage 48V
Contact Type Silver Alloy
IP Rating SIP67 and IP69K
Coil Connection DJ70216Y-1.8-11
Main Terminals M8x1.25
Power Connection Torque Spec. 8 ft/lbs, 96 in/lbs, 10Nm
