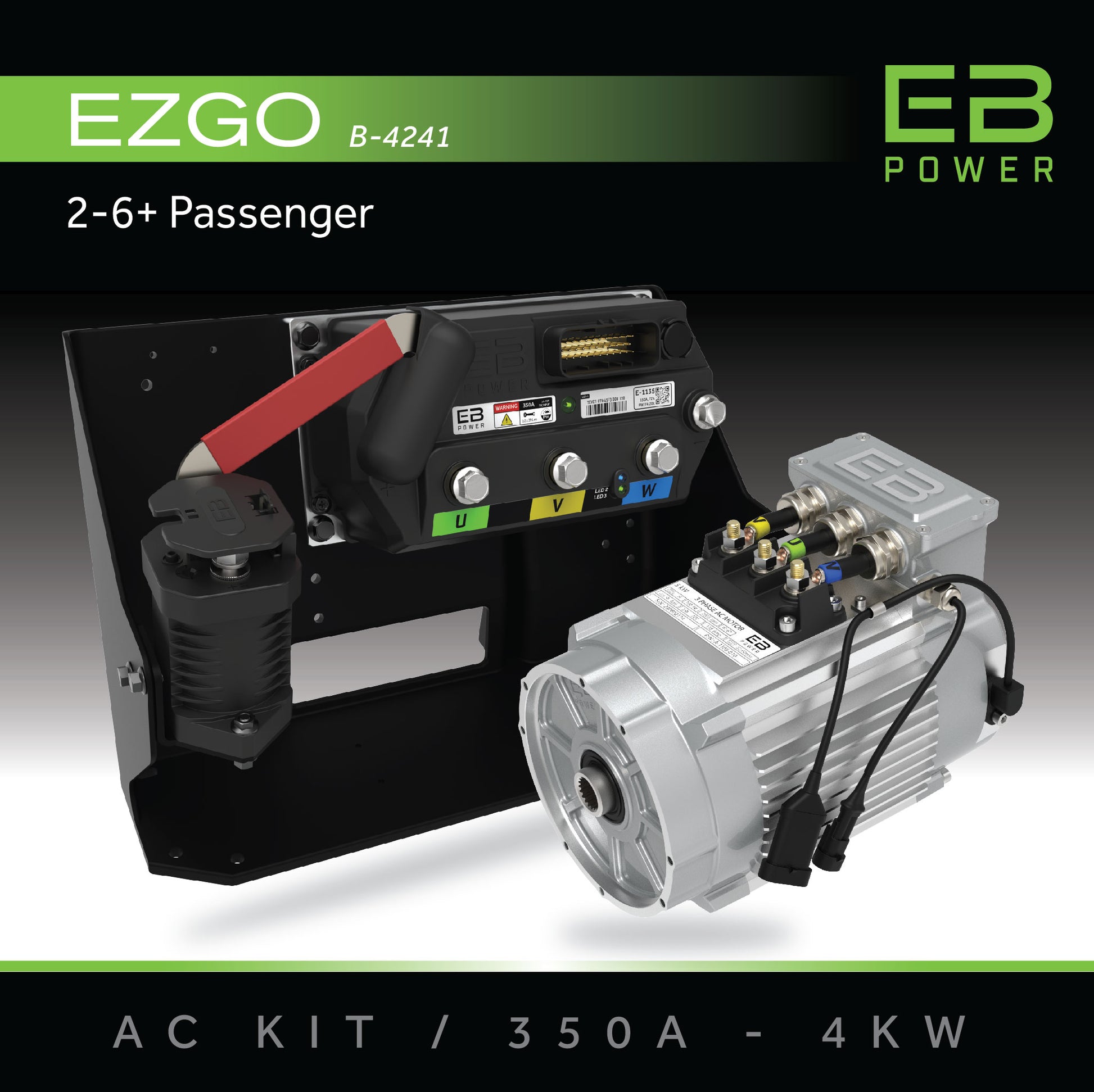

EB Power AC Kit / 350A + 4kW / EZGO / 2-6+ Passenger

EB Power AC Kit / 350A + 4kW / EZGO / 2-6+ Passenger

[MSRP: $1,850.00
[MSRP: Sale price $1,850.00
Sale Sold out

SKU:B-4241

This complete upgrade kit is built for easy installation, with a harness that includes all the right connections for every setup. One package works for both standard and extended wheelbase carts, covering 2- to 6-passenger models. Designed for all EZGO Medalist and TXT variations, its equipped with multiple new parts, including a replacement FNR switch for a modern, reliable 3-position switch for smoother operation.

Details

This Bundle Contains:

A-8711  EB Power Universal Controller Plate Assembly / 350 Amp
   A-8710  EB Power Universal Controller/Charger Plate
   A-1135  EB Power Motor Controller Unit / 350 Amp
   A-0116  EB Power Solenoid / 400A
   A-3016  EB Power Solenoid Mounting Bracket
   A-0122  EB Power Fuse / 400A / 150V DC
   A-3019  EB Power Fuse Cover / Motor Controller
   Configuration Specific Bus Bar
   Required Hardware

A-1104-019  EB Power 4kW Motor / 19 Spline
   Required Hardware

A-4025  EB Power AC Install Kit / EZGO
   A-4027  EB Power AC Accessory Pack / EZGO
   A-4179  EB Power AC Harness / EZGO / 6+ Passenger
   A-4241  EB Power 2 AWG Battery Cable Set / 46in Blk 53in Red
   A-4261  EB Power 2 AWG Phase Cable Set / 43in

Warranty

A 2-year warranty backs the EB Power AC Controller and Motor. With a U.S.-based headquarters and an industry-leading support team, we are committed to providing a lifetime of service and support.
View full details

Explore Bundle Features:

Eco Battery offers complete installation solutions for your specific cart.

Smart Installation

Smart Installation

Game-changing pre-installed controller mounting plates, complete harnesses, and adapters—all clearly marked and ready for easy installation. Save time and enjoy the reliability of brand-new cables, connections, and components!

Premium Driveablility

Premium Driveablility

Smooth, consistent throttle response, reliable performance, and three variable preset drive modes give your whole crew the ability to drive with both safety and fun.

Powerful Options

Powerful Options

With three controller options and two motor choices to mix and match, the EB Power lineup has the perfect setup for any ride—from mild to wild, 2-pass to 8-pass.

The Most Complete

The Most Complete

One order. One kit. EB Power is the ultimate solution! Everything you need—cables, switches, and connections are included for easy, no-guesswork installation. No more chasing down multiple shipments or tracking endless packages.

Elite Integration

Elite Integration

What happens when you pair the industry-leading Eco Battery lithium, their proprietary Battery Management System (BMS), and the new EB Power controller? You get the most complete, seamless integration possible, delivering unmatched performance, safety, features, and the best support team in the business.

Specifications

EB POWER CONTROLLER 600A 450A 350A
Nominal Voltage 36-90V 36-90V 36-90V
Dimensions 8.5"L x 6.6"W x 3.6"H - 218L x 168W x 93H (mm) 8.5"L x 5.7"W x 3.6"H - 218L x 146W x 93H (mm) 38.5"L x 4.35"W x 3.6"H - 218L x 116W x 93H (mm)
Power Connections (6) M8x1.25 (6) M8x1.25 (6) M8x1.25
Power Connection Torque Spec. 8 ft/lbs, 96 in/lbs, 10Nm 8 ft/lbs, 96 in/lbs, 10Nm 8 ft/lbs, 96 in/lbs, 10Nm
Weight 7.2 lbs, 3.3 kg 5.7 lbs 2.6 kg 4.8 lbs, 2.2 kg
IP Rating IP66 IP66 IP66
Storage Ambient Temp -40°C - 85°C -40°C - 85°C -40°C - 85°C
Operating Ambient Temp -40°C - 55°C -40°C - 55°C -40°C - 55°C
CAN Communication YES YES YES
Wi-Fi Communication via App YES YES YES
2 Minute Max Current 600A 450A 350A
60 Minute Rated Current 240A 180A 140A
Sensor Quadrature Encoder Quadrature Encoder Quadrature Encoder
Efficiency 98% 98% 98%
Cooling Flat Heatsink Flat Heatsink Flat Heatsink
EB POWER MOTOR 5kW 4kW
Motor Type Induction Induction
Voltage 48V 48V
Torque 48V 48V
Torque 55ft/lbs (75Nm) 46ft/lbs (63Nm)
Max Output Limits 5kW Continuous (9kW for 60 minutes) 4kW Continuous (8kW for 60 minutes)
RPM Limit 9500 9500
Dimensions 7.25x8.5x10.5 47.25x8.5x9.875
Weight 54 lbs - 24.5kg 51 lbs - 23kg
IP Rating IP67 IP67
Storage Temp -40°C - 85°C -40°C - 85°C
Environmental Operating Temp -30°C - 55°C -30°C - 55°C
Mounting Hardware Torque Spec. 15ft/lbs, 180 in/lbs, 20Nm 15ft/lbs, 180 in/lbs, 20Nm
Power Connection Torque Spec. 8 ft/lbs, 96 in/lbs, 10Nm 8 ft/lbs, 96 in/lbs, 10Nm
EB POWER SOLENOID SKU: A-0116
Voltage 200V DC Max
Continuous Amp 400A
Peak Amp 4000A for 1 second, 2000A for 10 seconds
Coil Voltage 48V
Contact Type Silver Alloy
IP Rating SIP67 and IP69K
Coil Connection DJ70216Y-1.8-11
Main Terminals M8x1.25
Power Connection Torque Spec. 8 ft/lbs, 96 in/lbs, 10Nm
