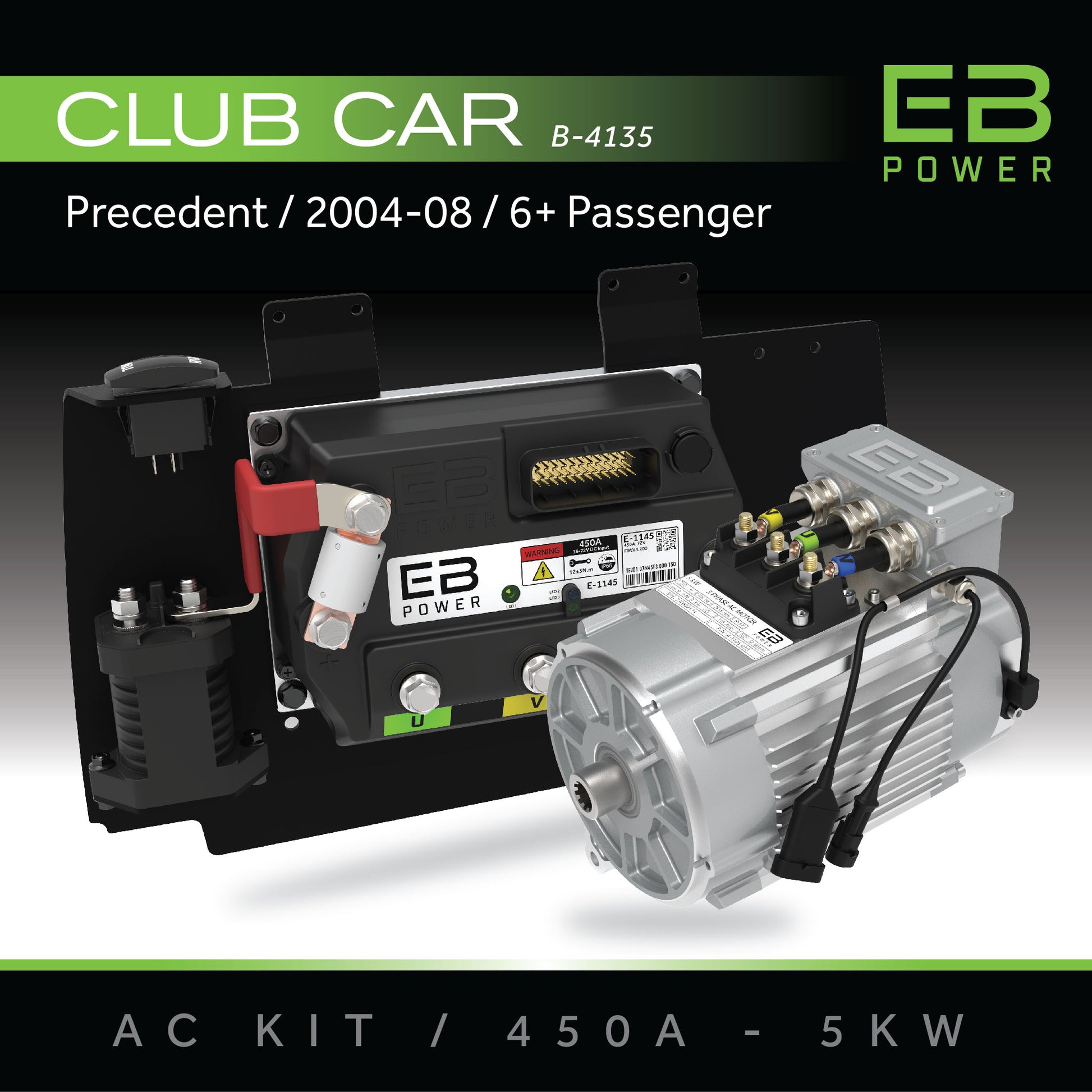

EB Power AC Kit / 450A + 5kW / Club Car Precedent / 2004-08 / 6+ Passenger

EB Power AC Kit / 450A + 5kW / Club Car Precedent / 2004-08 / 6+ Passenger

[MSRP: $2,150.00
[MSRP: Sale price $2,150.00
Sale Sold out

SKU:B-4135

Upgrade your long-wheelbase cart with this complete system designed for 6-passenger models. The extended harness is ready for oversized frames and includes every adapter for simple installation. This new chassis configuration eliminates the center section, moving the controller to a side mount plate to improve battery space and accessibility. A 450A controller paired with a 5kW motor delivers quick acceleration, strong torque, and all-around enhanced performance for larger carts.

Details

This Bundle Contains:

A-8772  EB Power Controller Plate Assembly / Precedent / 04-08
   A-8770  EB Power Controller/Charger Plate / Precedent / 04-08
   A-1145  EB Power Motor Controller Unit / 450 Amp
   A-0116  EB Power Solenoid / 400A
   A-3016  EB Power Solenoid Mounting Bracket
   A-0122  EB Power Fuse / 400A / 150V DC
   A-3019  EB Power Fuse Cover / Motor Controller
   Configuration Specific Bus Bar
   Required Hardware

A-1105-010  EB Power 5kW Motor / 10 Spline
  Required Hardware

A-4088  EB Power Adapter AC Install Kit / Precedent / 04-08
   A-4078  EB Power AC Adapter Accessory Pack / Precedent / 04-08
   A-4150  EB Power AC Adapter Harness / Club Car IQ/Excel
   A-4243  EB Power 2 AWG Battery Cable Set / 43in Blk 38in Red
   A-4261  EB Power 2 AWG Phase Cable Set / 43in

Warranty

A 2-year warranty backs the EB Power AC Controller and Motor. With a U.S.-based headquarters and an industry-leading support team, we are committed to providing a lifetime of service and support.
View full details

Explore Bundle Features:

Eco Battery offers complete installation solutions for your specific cart.

Specifications

EB POWER CONTROLLER 600A 450A 350A
Nominal Voltage 36-90V 36-90V 36-90V
Dimensions 8.5"L x 6.6"W x 3.6"H - 218L x 168W x 93H (mm) 8.5"L x 5.7"W x 3.6"H - 218L x 146W x 93H (mm) 38.5"L x 4.35"W x 3.6"H - 218L x 116W x 93H (mm)
Power Connections (6) M8x1.25 (6) M8x1.25 (6) M8x1.25
Power Connection Torque Spec. 8 ft/lbs, 96 in/lbs, 10Nm 8 ft/lbs, 96 in/lbs, 10Nm 8 ft/lbs, 96 in/lbs, 10Nm
Weight 7.2 lbs, 3.3 kg 5.7 lbs 2.6 kg 4.8 lbs, 2.2 kg
IP Rating IP66 IP66 IP66
Storage Ambient Temp -40°C - 85°C -40°C - 85°C -40°C - 85°C
Operating Ambient Temp -40°C - 55°C -40°C - 55°C -40°C - 55°C
CAN Communication YES YES YES
Wi-Fi Communication via App YES YES YES
2 Minute Max Current 600A 450A 350A
60 Minute Rated Current 240A 180A 140A
Sensor Quadrature Encoder Quadrature Encoder Quadrature Encoder
Efficiency 98% 98% 98%
Cooling Flat Heatsink Flat Heatsink Flat Heatsink
EB POWER MOTOR 5kW 4kW
Motor Type Induction Induction
Voltage 48V 48V
Torque 48V 48V
Torque 55ft/lbs (75Nm) 46ft/lbs (63Nm)
Max Output Limits 5kW Continuous (9kW for 60 minutes) 4kW Continuous (8kW for 60 minutes)
RPM Limit 9500 9500
Dimensions 7.25x8.5x10.5 47.25x8.5x9.875
Weight 54 lbs - 24.5kg 51 lbs - 23kg
IP Rating IP67 IP67
Storage Temp -40°C - 85°C -40°C - 85°C
Environmental Operating Temp -30°C - 55°C -30°C - 55°C
Mounting Hardware Torque Spec. 15ft/lbs, 180 in/lbs, 20Nm 15ft/lbs, 180 in/lbs, 20Nm
Power Connection Torque Spec. 8 ft/lbs, 96 in/lbs, 10Nm 8 ft/lbs, 96 in/lbs, 10Nm
EB POWER SOLENOID SKU: A-0116
Voltage 200V DC Max
Continuous Amp 400A
Peak Amp 4000A for 1 second, 2000A for 10 seconds
Coil Voltage 48V
Contact Type Silver Alloy
IP Rating SIP67 and IP69K
Coil Connection DJ70216Y-1.8-11
Main Terminals M8x1.25
Power Connection Torque Spec. 8 ft/lbs, 96 in/lbs, 10Nm
