Truly Everything
Everything you need. Includes controller, motor, and every connection accessory required for a complete, hassle-free installation.
-
Advanced Software
Built from the ground up by a U.S.-based team, the proprietary software offers safety, tunability, and exciting driveability.
-
Purposeful Hardware
Our three power options offer a variety of efficiency and performance. Built for the most popular cart models to maximize your ride.
-
Experience Driven
We built the powertrain we wanted—smooth, powerful, and fun. One complete system backed by the industry's #1 support team.
Explore Bundle Features:

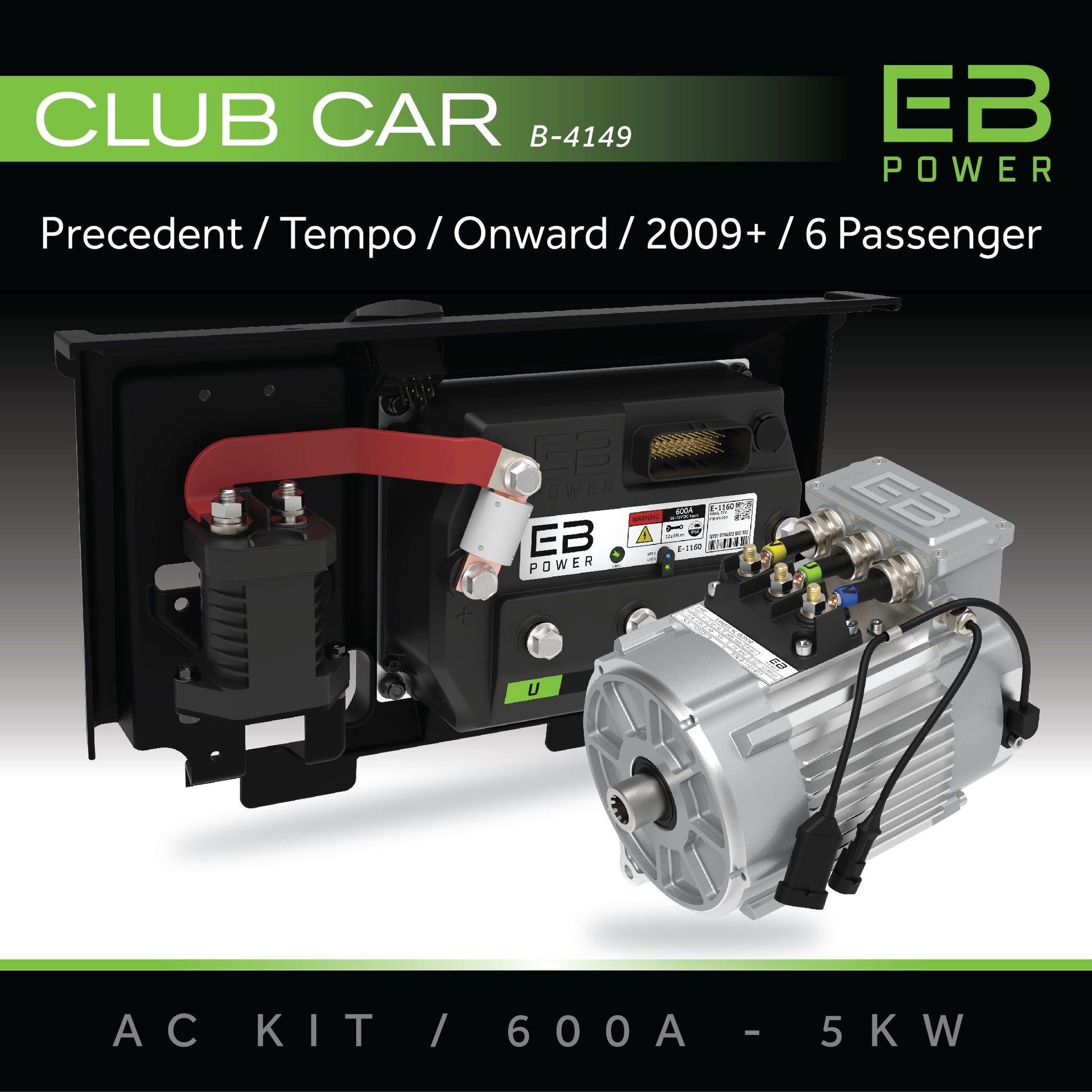

Eco Battery offers complete installation solutions for your specific cart.
Smart Installation
Game-changing pre-installed controller mounting plates, complete harnesses, and adapters—all clearly marked and ready for easy installation. Save time and enjoy the reliability of brand-new cables, connections, and components!
Premium Driveablility
Smooth, consistent throttle response, reliable performance, and three variable preset drive modes give your whole crew the ability to drive with both safety and fun.
Powerful Options
With three controller options and two motor choices to mix and match, the EB Power lineup has the perfect setup for any ride—from mild to wild, 2-pass to 8-pass.
The Most Complete
One order. One kit. EB Power is the ultimate solution! Everything you need—cables, switches, and connections are included for easy, no-guesswork installation. No more chasing down multiple shipments or tracking endless packages.
Elite Integration
What happens when you pair the industry-leading Eco Battery lithium, their proprietary Battery Management System (BMS), and the new EB Power controller? You get the most complete, seamless integration possible, delivering unmatched performance, safety, features, and the best support team in the business.
Specifications
| EB POWER CONTROLLER | 600A | 450A | 350A |
|---|---|---|---|
| Nominal Voltage | 36-90V | 36-90V | 36-90V |
| Dimensions | 8.5"L x 6.6"W x 3.6"H - 218L x 168W x 93H (mm) | 8.5"L x 5.7"W x 3.6"H - 218L x 146W x 93H (mm) | 38.5"L x 4.35"W x 3.6"H - 218L x 116W x 93H (mm) |
| Power Connections | (6) M8x1.25 | (6) M8x1.25 | (6) M8x1.25 |
| Power Connection Torque Spec. | 8 ft/lbs, 96 in/lbs, 10Nm | 8 ft/lbs, 96 in/lbs, 10Nm | 8 ft/lbs, 96 in/lbs, 10Nm |
| Weight | 7.2 lbs, 3.3 kg | 5.7 lbs 2.6 kg | 4.8 lbs, 2.2 kg |
| IP Rating | IP66 | IP66 | IP66 |
| Storage Ambient Temp | -40°C - 85°C | -40°C - 85°C | -40°C - 85°C |
| Operating Ambient Temp | -40°C - 55°C | -40°C - 55°C | -40°C - 55°C |
| CAN Communication | YES | YES | YES |
| Wi-Fi Communication via App | YES | YES | YES |
| 2 Minute Max Current | 600A | 450A | 350A |
| 60 Minute Rated Current | 240A | 180A | 140A |
| Sensor | Quadrature Encoder | Quadrature Encoder | Quadrature Encoder |
| Efficiency | 98% | 98% | 98% |
| Cooling | Flat Heatsink | Flat Heatsink | Flat Heatsink |
| EB POWER MOTOR | 5kW | 4kW | |
| Motor Type | Induction | Induction | |
| Voltage | 48V | 48V | |
| Torque | 48V | 48V | |
| Torque | 55ft/lbs (75Nm) | 46ft/lbs (63Nm) | |
| Max Output Limits | 5kW Continuous (9kW for 60 minutes) | 4kW Continuous (8kW for 60 minutes) | |
| RPM Limit | 9500 | 9500 | |
| Dimensions | 7.25x8.5x10.5 | 47.25x8.5x9.875 | |
| Weight | 54 lbs - 24.5kg | 51 lbs - 23kg | |
| IP Rating | IP67 | IP67 | |
| Storage Temp | -40°C - 85°C | -40°C - 85°C | |
| Environmental Operating Temp | -30°C - 55°C | -30°C - 55°C | |
| Mounting Hardware Torque Spec. | 15ft/lbs, 180 in/lbs, 20Nm | 15ft/lbs, 180 in/lbs, 20Nm | |
| Power Connection Torque Spec. | 8 ft/lbs, 96 in/lbs, 10Nm | 8 ft/lbs, 96 in/lbs, 10Nm | |
| EB POWER SOLENOID | SKU: A-0116 | ||
| Voltage | 200V DC Max | ||
| Continuous Amp | 400A | ||
| Peak Amp | 4000A for 1 second, 2000A for 10 seconds | ||
| Coil Voltage | 48V | ||
| Contact Type | Silver Alloy | ||
| IP Rating | SIP67 and IP69K | ||
| Coil Connection | DJ70216Y-1.8-11 | ||
| Main Terminals | M8x1.25 | ||
| Power Connection Torque Spec. | 8 ft/lbs, 96 in/lbs, 10Nm |
